| Quantity: | |
|---|---|
Uptek
0-2,000mm/s
3 years
Advantages

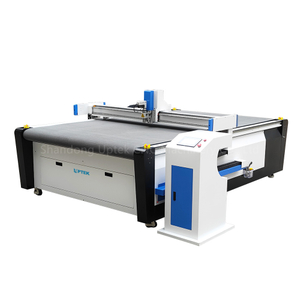

-Uptek CNC Rubber Washer Gasket Making Cutting Machine adopts Japan Yaskawa servo motors, Hiwin linear square rail and high precision rack to ensure the high cutting accuracy.
-High frequency oscillating cutting tool has strong cutting ability, which can improve cutting efficiency greatly.
-The machine body is welded with thick seamless steel tube and treated with high temperature, never deformation.
-The aluminum working platform adopts honeycomb structure design, which has better bearing capacity.
-User-friendly control system, easy to learn and operate.
-High power vacuum pump and very breathable felt. Workpieces can be fixed on the working table solidly.
-Infrared sensor system and emergency stop buttons prevent operator from injury.
-No air pollution. Uptek CNC Rubber Washer Gasket Making Cutting Machine cuts materials by blade not laser. There is no smoke and no burnt edge when cutting.
Applications
Uptek CNC Rubber Washer Gasket Making Cutting Machine is used for cutting gasket materials including non-asbestos, rubber, PTFE, silicon, asbestos, graphite, fiber paper, composites, etc.
Besides gasket materials, the Rubber Washer Gasket Making Cutting Machine also can cut cardboard, honeycomb paper, corrugated cardboard, grey board, KT board, glass fiber, carbon fiber, fabric, sticker, film, foam board, carpet materials, sponge, PU, EVA, XPE, PVC, PP, PE, ETFE, etc.
Parameters
| Product | CNC Rubber Washer Gasket Making Cutting Machine |
| Model | UP-1390 UP-1610 UP-1625 UP-1825 UP-2030 |
| Working area | 1300mm x 900mm 1600mm x 1000mm 1600mm x 2500mm 1800mm x 2500mm 2000mm x 3000mm (cutting area can be customized) |
| Working table | Fixed working table, Automatic feeding working table. |
Material fixed way | Vacuum suction system |
Cutting speed | 0-2,000mm/s (according to different materials) |
Cutting thickness | ≤45mm (according to different materials) |
Cutting accuracy | ≤0.05mm |
Drive system | Japan Yaskawa servo motors and drivers |
Transmission system | Taiwan Hiwin linear square rail, gear and rack |
Vacuum pump power | 5.5KW, 7.5KW, 9.0KW |
Graphic format supported | .plt, .dxf, .hpg, .hpgl, .arr, .pce, .splt, etc. |
Compatible | CORELDRAW, AUTOCAD, etc. |
Safety device | Infrared sensors and emergency stop devices |
Working voltage | AC 220V/380V±10%, 50Hz/60Hz |
| Packaging | Plywood case for export |
Cutting Samples
Recommend Cutting Tools
About Uptek
We are professional manufacturer of CNC Gasket Cutting Machine.
If you are interested in our CNC Rubber Washer Gasket Making Cutting Machine, please feel free to contact us.
