UP-1625
Uptek
2 years
Advantages

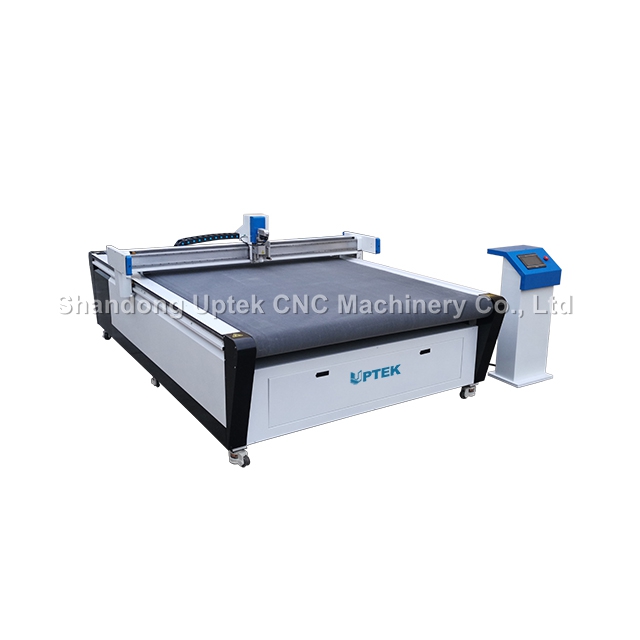

The Polyester PET Felt Acoustic Panels Board Digital Cutting Machine adopts Japan top brand servo motors, Taiwan Hiwin linear square rail and high precision rack to ensure the high cutting accuracy.
High frequency oscillating cutting tool has strong cutting ability, which can improve cutting efficiency greatly.
The machine body is welded with thick seamless steel tube and treated with high temperature, never deformation.
The aluminum working platform adopts honeycomb structure design, which has better bearing capacity.
User-friendly control system, easy to learn and operate.
The Polyester PET Felt Acoustic Panels Board Digital Cutting Machine adopts high power vacuum pump and very breathable felt. Workpieces can be fixed on the working table solidly.
Infrared sensor system and emergency stop buttons prevent operator from injury.
No air pollution. The Polyester PET Felt Acoustic Panels Board Digital Cutting Machine cuts materials by blade not laser. There is no smoke and no burnt edge when cutting.
Control Panel
Applications
Uptek Polyester PET Felt Acoustic Panels Board Digital Cutting Machine is used for cutting gasket materials including asbestos, rubber, PTFE, silicon, non asbestos, graphite, fiber paper, composites, etc.
Besides gasket materials, the Asbestos Rubber Silicone Graphite CNC Gasket Cutting Machine also can cut cardboard, honeycomb paper, corrugated cardboard, grey board, KT board, glass fiber, carbon fiber, fabric, sticker, film, foam board, carpet materials, sponge, PU, EVA, XPE, PVC, PP, PE, ETFE, etc.
Parameters
| Product | Polyester PET Felt Acoustic Panels Board Digital Cutting Machine |
| Model | UP-1625 |
| Working area | 1600mm x 2500mm (cutting area can be customized) |
| Working table | Fixed working table Automatic feeding working table |
Material fixed way | Vacuum suction system |
Cutting speed | 0-2,000mm/s (according to different materials) |
Cutting thickness | ≤70mm (according to different materials) |
Cutting accuracy | ≤0.1mm |
Drive system | Japan Yaskawa servo motors and drivers |
Transmission system | Taiwan Hiwin linear square rail, gear and rack |
Vacuum pump power | 7.5KW / 9.0KW |
Graphic format supported | .plt, .dxf, .hpg, .hpgl, .arr, .pce, .splt, etc. |
Compatible | CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc. |
Safety device | Infrared sensors and emergency stop devices |
Working voltage | AC 220V/380V±10%, 50Hz/60Hz |
| Packaging | Plywood case for export |
Cutting Samples
Recommend cutting tools
