UV Co2 Fiber Laser Marking Machine
You are here: Home » Products » Laser Marking Machine » Fiber Laser Marking Machine » UV Co2 Fiber Laser Marking Machine
Share to:

UV Co2 Fiber Laser Marking Machine

Laser Marking Machines use laser beams to engrave permanent markings on the surface of different materials. The process of marking is to expose deep materials through the gasification of surface substances or to break chemical bonds of materials. Thus engrave exquisite images, logos and texts on workpieces.

Quantity:

UV Co2 Fiber Laser Marking Machine for Metal And Non-metal

Laser Marking Machine

Laser Marking Machines use laser beams to engrave permanent markings on the surface of different materials. The process of marking is to expose deep materials through the gasification of surface substances or to break chemical bonds of materials. Thus engrave exquisite images, logos and texts on workpieces.


Features of Our Laser Marking Machine

  1. Advanced laser source: long service life and stable output laser power.

  2. User-friendly control system: stable working performance, easy to learn and use.

  3. High marking precision and fast marking speed: digital scanning galvanometer with Germany SCANLAB technology.

  4. Better laser efficiency and focus quality: Singapore Wavelength F-theta Lens has high transparent rate.

  5. Safe enough: leakage protection system prevents the user from getting an electric shock.

  6. Red light positioning system: marking area positioning and focal length adjustment become easier.

  7. 24 hours working continuously: Taiwan Meanwell power supply doesn't overheat after long working hours.


In order to meet different working needs, we supply different types of Laser Marking Machine for choice.

Portable type Laser Marking Machine:

Fiber Laser Marking Machine

Desktop type Laser Marking Machine:

Co2 Marking Machine

Enclosed type Laser Marking Machine:

UV Laser Marking Machine

Control software

Friendly user interface.

Support Windows 7, Windows 8 and Windows 10 computer system.

Support bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt and other formats designed by AutoCAD, Corel Draw, Photoshop, etc.

Support different languages including English.

UV Co2 Fiber Laser Marking Machine

All of our Laser Marking Machines use legitimate EzCad control system.


Parameters

Product

Laser marking machine

Working area 110×110mm, 150×150mm, 175×175mm, 200×200mm, 300×300mm(optional)
Output laser power 0-100%, can be adjusted by control software
Control software  EzCad
Graphic file format supported bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc.
Repeatability accuracy ±0.001
Gross power <800W
Working voltage AC 110V/220V±10%, 50Hz/60Hz
Packaging

Plastic films, foams and strong wooden case.

Warranty

2 years

Payment terms
T/T, Paypal, Western Union, etc.
Optional parts

Rotary device

Electric up and down device

Automatic focus function


Applications

Laser marking machines include Fiber Laser Marking Machine, Co2 Laser Marking Machine, Ultraviolet Laser Marking Machine, etc. They differ in the wavelength of laser.

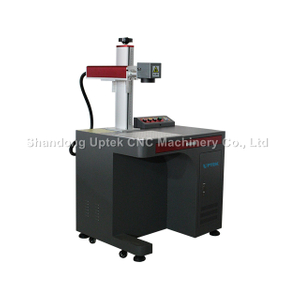

1. Fiber Laser Marking Machine can mark on all metals and some opaque non-metals.

Application materials of Fiber Laser marking machine: stainless steel, carbon steel, gold, silver, iron, copper, aluminum, steel, plastic, PVC, epoxy resin, rubber, leather, ceramics, ABS materials, coating materials, plating materials, metal oxide surface, etc.

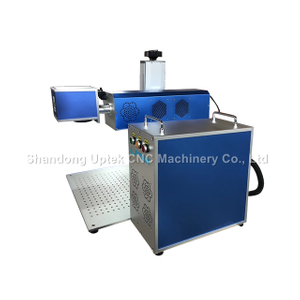

2. Co2 Laser Marking Machine is used for marking non-metallic materials.

Co2 Laser Marking Machine has two kinds of laser source: Co2 laser glass tube and  Co2 laser RF source. The laser spot of Co2 laser RF source is smaller, but its price is higher.

Application materials of Co2 Laser Marking Machine: most non-metallic materials such as paper, acrylic, PVC, jean, leather, fabric, glass, ceramics, marble, bamboo, wood, MDF, plastic, etc.


3. UV Laser Marking Machine is for ultra-fine marking.

The wavelength of UV laser is 355nm . 355nm UV laser is cold light, which has a very small laser spot. UV laser can greatly reduce thermal reaction or thermal deformation to the materials when marking.

Applications of UV Laser Marking Machine: flexible PCB, silicon wafer, glass, metal electroplating materials, wires, plastic buttons, electronic components, communication equipments, building materials, etc.


Samples

Fiber Laser Marking Machine

UV Laser Marking Machine


Parts of Our Laser Marking Machine

UV Laser Marking MachineCo2 Laser Marking MachineFiber Laser Marking Machine


Our Service
1. Two years warranty for our Laser Marking Machine. If machine part is broken during warranty period, new part will be sent to you for free.

2. 24 hours online after-sale service.

3. User manual and training video will be provided.

4. Free machine training in our warehouse. If you need, our technician can go to your company for machine training.

5. If this is your first time to import Laser Marking Machine, don't worry, we will try our best to help you arrange shipment and clear customs.


About Uptek

Shandong Uptek CNC Machinery Co., Ltd is located in Jinan City, Shandong Province, China. We are one of leading manufacturer of Laser Marking Machine, Laser Cutting & Engraving Machine, CNC Router and Digital Cutting Machine with more than 14 years experience. Our Laser Marking Machine has obtained CE, ISO 9001 and FDA certificates.

We are confidence of winning your praise and trust via high quality products, competitive prices and perfect service.

UV Co2 Fiber Laser Marking Machine

Laser Marking Machine Manufacturer

Co2 Fiber Laser Marking Machine Factory

We are committed to the development and manufacture of Laser Cutting Machine, Laser Engraving Machine, Laser Marking Machine, Digital Knife Cutting Machine, CNC Router, 3D Scanner, etc.
